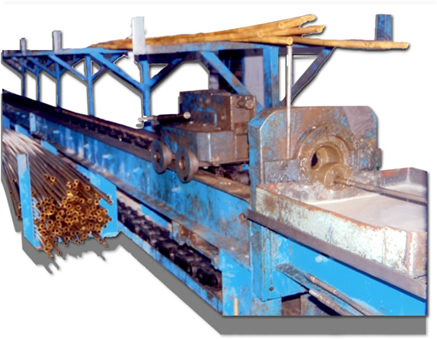

Draw Bench Machine

This machine is been used for drawing the pipes as well as solids on to the desired shape without changing the property of it.

Micron offers single / Double draw + benches with automatic functions. It has been designed for a high productivity blends with perfect quality and finish.
Trolley
There are two types of trolleys available for Micron Draw Bench Machines: Lever Pusher Type and Gear & Rack Type. It helps to draw the pipes and solids on to the desired shape
Chain  & Sproket
It takes the load of the trolley. Microns Chains has been designed and manufactured with high quality EN Serial Material for long life and better performence.
Controls
Controls and mounted on to the machine with high accuracy electrical equipments including all standard features

Range of Straightening Machines

  • 50mm Single Heavy Duty

  • 40mm single & Double Heavy Duty

  • 20mm Double Light Duty

  • 12mm Double Light Duty
Machine Features

  • Pulling trolley with automatic fast return

  • Pneumatic clamps have been provided in order to avoid tube slippage.

  • Automatic tube feeding mechanism.

  • Spherical die holder for self alignment.

  • Heavy duty helical high reduction gear box.

  • Trolley driven by duplex type single sprocket.

  • High quality chain having rupture strength 6 time of the draw force.

  • Automatic tube evacuation at the front frame.

DRAW BENCH MACHINE
Model Normal Max (O.D)

 mm

 Max Length of Product Tube

 mm

 Pull Force

mt
TDB10 20 6 0-303-10
TDB15 50 20 0-5-15
TDB20 70 40 0-6.6-20
TDB30 75 50 0-10-30
TDB40 90 60 0-13.3-40
TDB50 125 65 0-16.6-50
