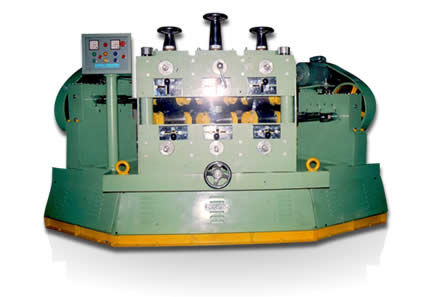

Tube  Straightening Machine

The demand for tubes with higher degree of accuracy and greater degree of straightness free of ripples and markings are high in the industries. For this purpose Micron offers various range of tube straightening machines.

The tube straightening machine is working on a well known rotary principle therefore it allows the tube to be straightened in a perfect shape. To fulfill this requirement Micron offers two types of straightening machine with 6 rolls and 10 roll design with an accuracy of 0.3mm per 3 meter and 0.2mm per 3 meter respectively.
Main Drive
It consist of a totally enclosed self lubricated gear boxes, each having three/five output shafts which connected by the universal joints. Electric Motor been connects the input shaft through Vee Belt..
Rolls

Rolls are made from hardened alloly steel, hyperbolic profile - ground and lapped to a very high degree of finish to five perfect straightness and good surface finish.

Since it has been designed in a hyperbolic profile it bond to accept the widest range of tube diameters.
Controls

Controls and mounted on to the machine with high accuracy electrical equipments including all standard features.

Range of Straightening Machines

  • 10mm / 6 & 10 Roller  Type

  • 20mm /  6 & 10 Roller Type

  • 40mm / 6 & 10 Roller  Type

  • 50mm / 6 & 10 Roller Type

  • 75mm / 6 & 10 Roller Type

  • 100mm / 6 & 10 Roller Type
Machine Features

  • High dimensional accuracy of machine.

  • Saving in material & weight of pipes, machine available in both six and ten work rolls arranged in pairs

  • Rolls can be adjusted angularly in order to five a perfect contact between the tube and roll over the maximum effective roll profile.

  • Both upper and lower side rolls are driven by two individual motors

SWAGING MACHINE (MICRON SERIES)
Model Normal Capacity Range (O.D) mm Max Dia.Admit mm Max Wall Thickness mm Max Wall Thickness mm Normal Oper. Speed Mtr/Min Motor H.P
TS10 1- 8 9.0 2.0 2.0 45 1.0
TS12 3-13 15 2.5 2.0 40 1.5
TS22 4-20 20 2.5 2.5 38 2.0
TS32 8-30 32 3.2 2.5 35 3.0
TS30 10-40 45 4.5 3.5 32 3.018
TS60 16-65 70 6.0 4.0 26 5.0
TS75 25-75 80 8.0 6.5 22 5.0
TS80 25-80 85 8.5 7.0 18 7.5
TS90 30-90 95 9.5 7.0 12 10
TS100 40-100 105 10 7.5 10 10
